When the inside matters

ZEISS METROTOM 1 stands for ease of use, precise 3D data and quality control from the outside in.

Watch Video

Free Demo

One scan, deep insights

Fast, intuitive and highly precise

ZEISS METROTOM 1 is your fast way forward: Capture precise 3D data without any part preparation. Powered with computed tomography technology, you can scan parts non-destructively and look inside. Measure, analyze and inspect hidden defects and inner structures. In combination with the software ZEISS INSPECT, it reaches a new dimension to simplify your quality control.

A compact and easy-to-operate system to capture the data for your tasks

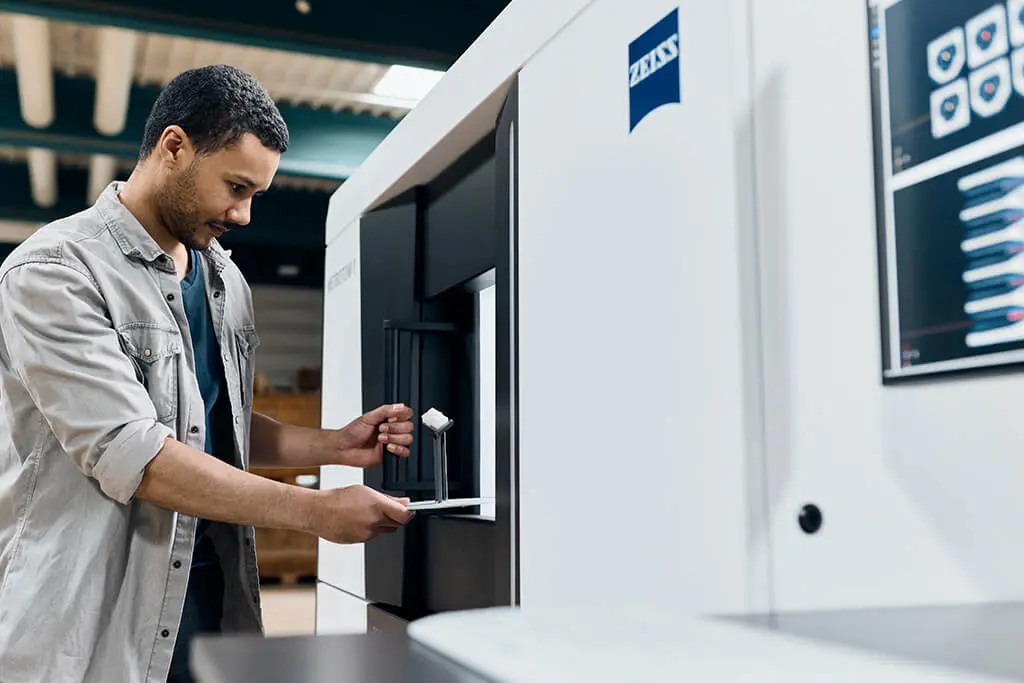

The simple-to-operate system enables various users to start the measuring process and capture precise data. Characterized by its compact dimensions, METROTOM 1 fits easily into your space. Get started with your inhouse measurements and inspections in just one step by pushing the button. To keep your maintenance low, the smart and compact solution comes with a closed x-ray tube.

Capture 3D data without part preparation

With METROTOM 1 you can inspect internal structures and defects using non-destructive scanning. No part preparation is needed before starting the measurement process. While you scan the next part, you can inspect or reverse engineer the previous one.

Multiple part scanning

Measuring multiple parts at the same time is one of the most efficient features of METROTOM 1. The formula is simple: high quantities with optimum use of the measuring volume. The result: faster scanning time per part without compromising on quality. ZEISS INSPECT automatically separates and evaluates the individual parts so that results are quickly available as a report.

Check internal structures and defects

The METROTOM 1 with ZEISS INSPECT guides you step-by-step through the measurement process. With volume visualization and inspection of your scan data, you can discover all dimensions of your parts, even the hidden ones. By scanning all internal and external structures, parts can be easily reversed.

Easy and efficient. With just one scan. METROTOM 1 supports you with:

3D scanning of small to medium components
Accurate measurement
Quality inspection and assurance
Deep analysis of rejects
Checking components against their CAD

gruenerverschluss_errors3_4_47-1024x768 (1)

alubruecke_alu_errors3_4_365-1024x768 (1)

Get A Quote!

Our experts in ZEISS #HandsOnMetrology solutions are happy to answer any questions you have. Free DEMO kits available for sample testing.

Get A Quote

Features

Active temperature balancing for precise results

METROTOM 1 is developed for many conditions. In addition to its robust design, it is also protected against internal temperature fluctuations. The active cooling system keeps your system running: It ensures the exact same temperature inside and outside of the system to prevent any thermal expansion of your parts. METROTOM 1 is a stable, heavy-duty system filled with cutting-edge technology.

Digitally guided by ZEISS INSPECT for optimal results

METROTOM 1 operates with ZEISS INSPECT, the all-in-one, user-centered software solution and established standard in 3D metrology. Powerful functions like volume visualization and inspection, dimensional metrology, trend analyses and comparisons, defect detection and inspection make it the perfect tool to use the capabilities of the system.

Highly accurate measurement results

Every METROTOM 1 is checked for accuracy – during production and additionally after the on-site installation. The accuracy check is done using a calibrated and DAkkS-certified acceptance artifact. The scanner can be recalibrated by you at any time using the calibration object on site.

Different applications have different requirements

Measure everything easily within a measuring volume of 165 x 140 mm. The measuring volume can be fine-tuned digitally. At the same time, you can adjust the resolution to speed up your process resulting in fast scanning times according to your needs.

Ask Our Experts

Applications

Limitless use cases. Whether medium-sized or small plastic parts – with METROTOM 1 there are no limits to your possibilities: connectors, plastic caps, wax cores from the aerospace industry, whatever you want. It is the ideal solution for companies that need to inspect small to medium-sized batches. Powerful and versatile.

Quality control and inspection

Nominal-actual CAD-to-part comparison
Dimensional measurements
Section inspection at any depth of the part
Analyse wall thickness distribution
Functional dimensioning for first article

Tool and mold making

Ensure correct first part by scanning multiple samples produced with different parameters
Reducing the number of iterations in your process
Monitor production process with fast inspection of multiple parts
Actual capture following tool approval
Warpage compensation of component

Product development and design

Examine even high demanding products like transparent objects and soft polymers
Functional and error analysis of assemblies
Non- destructive material defect analysis e.g. blowholes, pores or cracks
Reverse engineering of existing parts or part geometries
Validate engineered designs

Download Catalog

Free DEMO kits available for sample testing.

METROROM 1 IS
VERSATILE SO EASY PORTABLE VERY FAST ACCURATE ROBUST
