ZEISS T-SCAN hawk 2 — Handheld 3D Laser Scanner
Metrology-grade handheld precision — 0.02mm + 0.015mm/m accuracy.

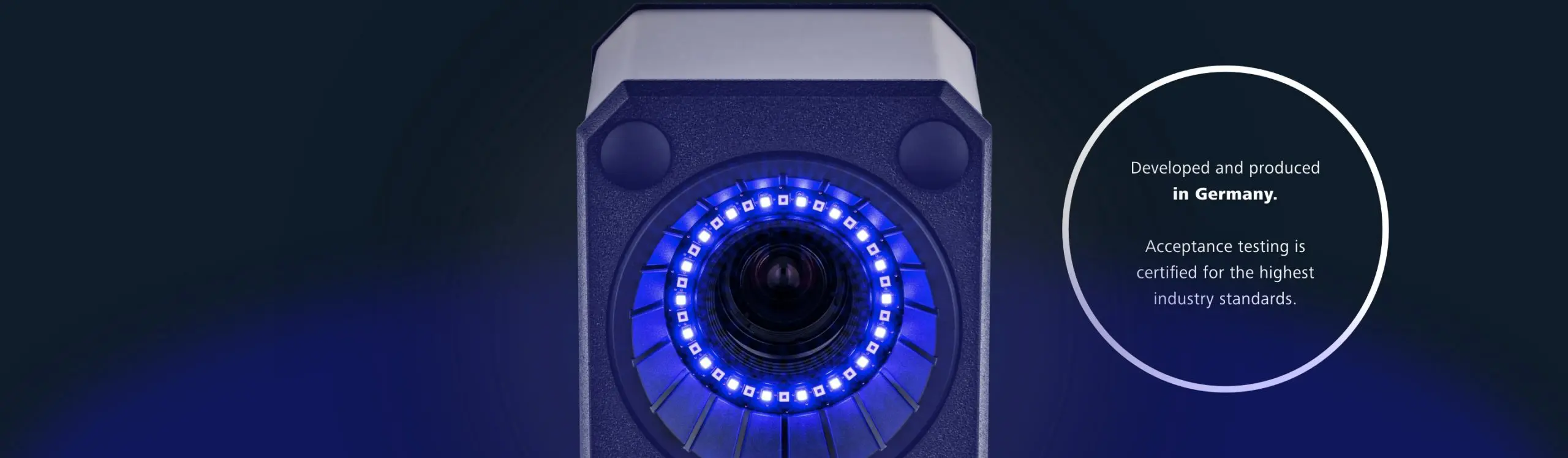

Handheld precision, developed and produced by ZEISS
The ZEISS T-SCAN hawk 2 is a handheld 3D laser scanner built for metrology-grade precision on the shop floor or in the field. At under 1kg, this portable 3D scanner fits in one hand and travels in a single case — indoors, outdoors, or anywhere your part is.
Watch the ZEISS T-SCAN hawk 2 handheld 3D laser scanner in action
See how the ZEISS T-SCAN hawk 2 scans complex parts, switches to satellite mode, and integrates with ZEISS INSPECT — real workflow, not a highlight reel.
Your perfect working distance
The ZEISS T-SCAN hawk 2 features an advance projection mode which projects a red laser marker to guide working distance or target areas in real time, so operators can adjust position instantly for consistent, accurate results.
A solution that adapts to your workflow
The ZEISS T-SCAN hawk 2 adapts to the natural movement of your hand, letting operators scan intuitively without stopping to adjust settings.
Go big with the new satellite mode
The ZEISS T-SCAN hawk 2 is the first portable laser scanner with satellite mode, extending scan range to multiple metres without classical built-in photogrammetry or coded targets — with no compromise on accuracy.
ZEISS INSPECT – The all-in-one software for 3D inspection
The ZEISS T-SCAN hawk 2 operates with ZEISS INSPECT, the established standard in 3D metrology and part of the ZEISS Quality Suite. Try the Pro version free for 30 days.
What is the ZEISS T-SCAN hawk 2 handheld 3D laser scanner?
The ZEISS T-SCAN hawk 2 is a handheld 3D laser scanner weighing under 1kg, delivering 0.02mm + 0.015mm/m volumetric accuracy on parts from small components to multi-metre assemblies via satellite mode. It is portable, fast to operate and easy to use. It runs on ZEISS INSPECT software, scans dark and reflective surfaces, and is DAkkS/ILAC-certified for system qualification.
Features
Operate with a push of a button
The ZEISS T-SCAN hawk 2 features four onboard buttons to start and navigate your workflow directly — no need to operate software separately on your laptop.
Switching between different tasks
T-SCAN hawk 2 features seamless adjustments for resolution and field of view. Whether small parts, fine details, larger objects or deep pockets, confined spaces or hard-to-reach areas, this precise handheld measurement scanner does the job.
Strong on dark and shiny surfaces
The ZEISS T-SCAN hawk 2 scans a wide range of materials and surfaces — including dark and reflective ones — while delivering 3D measurement data at the highest precision.
Reference standards for system qualification
Carl Zeiss GOM Metrology GmbH is an accredited laboratory in the fields of calibration of length and coordinate standards for optical metrology.
Each T-SCAN hawk 2 system is delivered with three DAkkS-calibrated, traceable length standards and one DAkkS-calibrated, traceable coordinate standard which are used for system qualification.
Applications
Maintenance
Reverse engineering
Quality Control
Design
Technical Data
The ZEISS T-SCAN hawk 2 handheld 3D laser scanner is built to the specifications below, verified through DAkkS/ILAC-certified reference standards and ISO 10360 acceptance testing.
| ZEISS T-SCAN hawk 2 | Specification |
|---|---|
| High-speed scanning | Included (multiple blue laser crosses) |
| Deep pockets | Included (single blue laser line) |
| Flexible depth of field | Included (on-object distance radar) |
| Detailed scan | Included |
| One-shot sensor recalibration | Included (HyperScale) |
| Large parts | Included (Satellite mode, no coded targets required) |
| Carbon-fibre length standards | Certified (DAkkS / ILAC) 1 |
| Volumetric accuracy | 0.02mm + 0.015mm/m 2 |
| Laser class (IEC 60825-1:2014) | Class 2 (eye-safe) |
| Weight | < 1kg |
| Cable | 10m (ultra-light) |
| Software | ZEISS INSPECT |
| Full remote workflow | Supported |
1 D-K-21312-01-00 according to DIN EN ISO/IEC 17025:2018
2 Acceptance test based on ISO 10360
