ZEISS ScanPort | Automated 3D metrology rotary table

ZEISS ScanPort is an automated 3-axis 3D metrology system combining a movable sensor, tilt axis, and rotation table. It automatically captures up to 12 million points per scan with blue light technology. Free on-site demo from Alloytool Malaysia, ZEISS official partner.

Free Demo

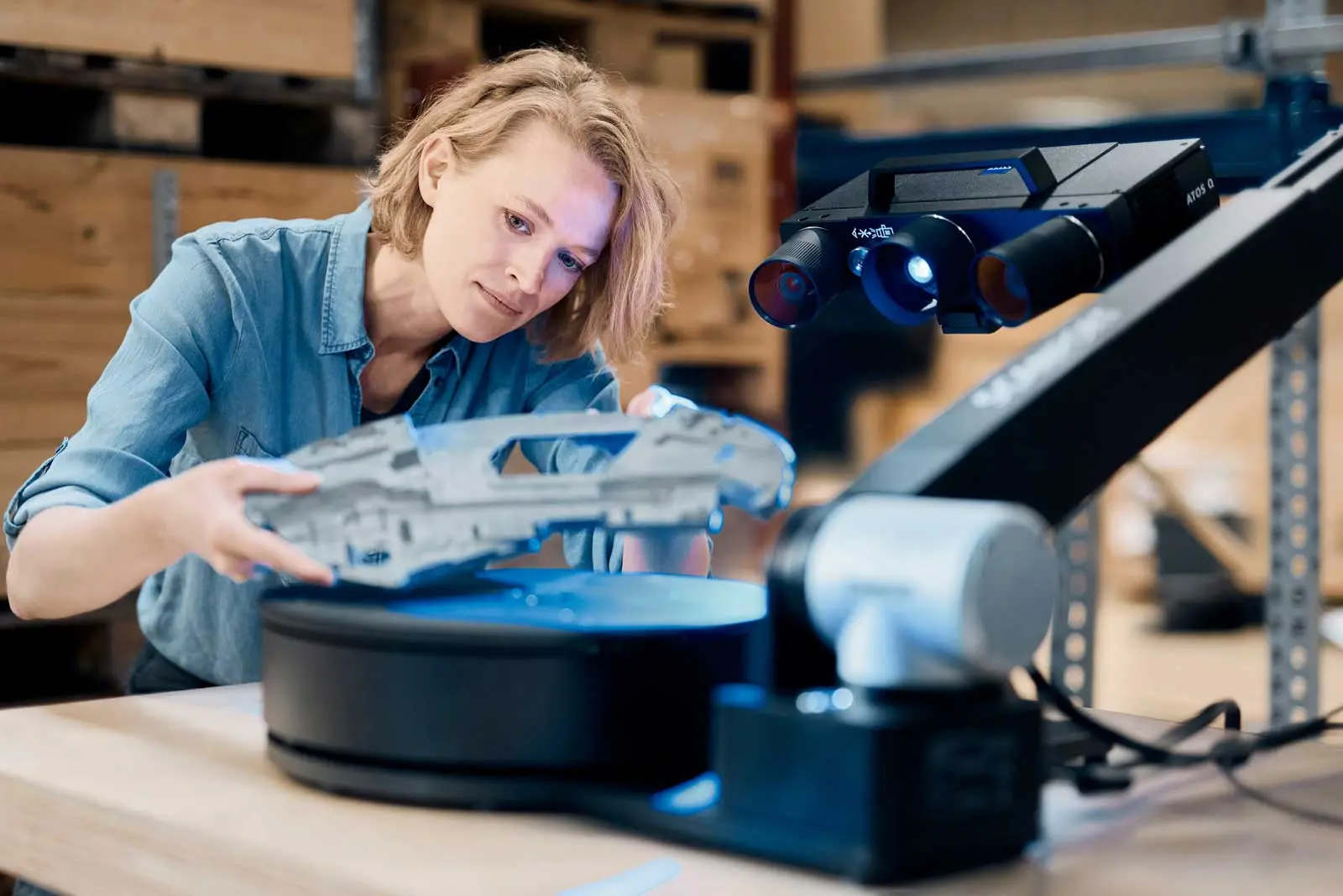

ZEISS ScanPort - Automated metrology 3-axis 3D Rotary Table
ZEISS ScanPort - Automated metrology 3-axis 3D Rotary Table - close up

What Is ZEISS ScanPort?

​ZEISS ScanPort is a complete solution for 3-axis automation with just one click. It is a mobile and flexible automated system that delivers metrologically flawless data. Best for repeated measurements to save time and labour. Operated with ZEISS INSPECT, ZEISS ScanPort is your all-in-one solution to capture all details of small to medium-sized parts. Easy metrology automation.

Watch the ZEISS ScanPort in action

See how the ZEISS ScanPort automatically captures metrology-grade data with just a push of a button.

ZEISS ScanPort motion replay reproducing a repeat 3D scan

Metrology-grade quality

ZEISS ScanPort offers high accuracy and fast, precise 3D data. Fringe Projection Technology and Blue Light Technology guarantee the highest quality.

3-axis automated 3D scanning

ZEISS ScanPort is a semi-automated all-in-one solution. The automated arm, which moves up and down and tilts backwards or upwards, offers 3-axis automation in combination with the rotation table. The sensor therefore measures from different distances and angles, capturing every detail of the measured part.

ZEISS ScanPort 3-axis automated arm measuring a part
ZEISS ScanPort modular system packed for transport

Mobile and flexible

ZEISS ScanPort brings automation to you, wherever you need it. Simply place it and you can start measuring your part, even directly in production. Its lightweight and modular design makes it easy to transport or move around. For added flexibility, you can take off the 3D scanner to also measure large parts. ZEISS ScanPort is available in different versions, that allow you to choose the resolution according to the details you need.

A software that guides you

ZEISS ScanPort operates with ZEISS INSPECT, the well-established standard in 3D metrology. Powerful mesh editing functions make it an ideal tool for 3D printing and reverse engineering. What’s more, you can effortlessly handle simple and complex tasks throughout your inspection process. A software to simplify and speed up your workflow.

ZEISS INSPECT 3D inspection software interface

Is ZEISS ScanPort a 3D scanner, or an automation system?

ZEISS ScanPort is an automation system, not a scanner. It is a 3-axis motion platform — a motorised arm that raises, lowers and tilts, combined with a 350 mm rotation table — that carries a ZEISS 3D scanner around your part so the sensor measures from multiple angles and distances without an operator repositioning anything. The sensor itself is a ZEISS ATOS Q or GOM Scan 1, which is why performance figures such as up to 12 million points per scan and 0.03 mm point distance come from the scanner mounted on it. The platform handles parts up to 20 kg within a scanning volume of 500 mm diameter × 300 mm, weighs around 22 kg, and breaks into modules of 11 kg or less for transport. Because the scanner detaches, the same sensor can be lifted off ScanPort and used freestanding on larger parts.

Features

ZEISS ScanPort in combination with ZEISS INSPECT offers high repeatability and accuracy. With motion replay and scanning templates, repeatability is easier than ever. With just one click, you can reproduce your entire scan. ZEISS ScanPort is a reliable and powerful solution for all your measuring tasks.

The pre-defined scanning templates in ZEISS INSPECT don’t require any setup. Just position the part and start scanning. Customizable templates allow you to add additional instructions to the measuring setup.

ZEISS ScanPort is a powerful solution for the repeated inspection of complex, similar parts. With motion replay, you can repeat the same measurement with just one click, whereby the inspection for the second part is automatically updated. You can even see deviations between all measured parts, allowing you to quickly identify trends between the parts.

ZEISS INSPECT is our all-inclusive, easy-to-use 3D metrology software. With this powerful software, mesh editing, CAD comparison or 3D model creation is done with just a few clicks. Extended software capabilities such as the kiosk mode ensure that you can make the most of measuring with this system. In this mode, ZEISS ScanPort is operator-independent and anyone can measure and inspect the required parts.

The workflow assistant in ZEISS INSPECT guides you step by step through typical measurement tasks. Simply choose what you want to do, such as scanning multiple parts at once, and follow the instructions. With ZEISS ScanPort and ZEISS INSPECT you are supported throughout your entire metrological workflow.

Recalibration of ZEISS ScanPort is very easy and automated. With the included DAKKS/Ilac-calibrated hyperscale, a quick and one-shot calibration ensures your sensor delivers high-quality data.

Ask Our Experts
ZEISS INSPECT template-based scanning workflow on ScanPort

What is the difference between ZEISS ScanPort and ZEISS ScanCobot?

Both automate ZEISS 3D scanning, but they solve different problems. ZEISS ScanPort is a portable 3-axis system — a tilting, height-adjustable arm plus a rotation table — designed to move and set up quickly. At roughly 22 kg in modules no heavier than 11 kg, with a travel case available, it suits teams who need automated inspection in more than one location, or who move it between a measuring room and the production floor. ZEISS ScanCobot is a 7-axis system built around a collaborative robot arm on a wheeled workstation. The extra axes give fuller part coverage in a single setup and true unattended series measurement, at the cost of a larger, heavier machine that stays where you put it. Choose ScanPort for automation you can pick up and carry; choose ScanCobot for volume throughput at a fixed station.

Applications

ZEISS ScanPort scanning an industrial part for quality inspection

Automated scanning catches warpage, sink marks and shrinkage across repeat shots — run the same mold cavity part after part and compare every result against CAD without resetting up each time.

Verify additive parts against the source model as they come off the printer. Motion replay makes it fast to re-check the next part in a batch print run.

Digitize legacy or parts with no drawing/dimension data into usable CAD data, with the rotation table capturing full geometry from multiple angles in one automated pass.

Inspect sand, pressure die and investment castings for porosity-driven dimensional drift, wall thickness and draft angle — repeatably, across a production run.

Check formed sheet metal parts for springback and dimensional consistency across a stamping or bending process, part after part, without manual repositioning.

Capture accurate 3D geometry for visualisation, digital twins or virtual product displays, with automated multi-angle coverage in a single setup.

Take your ZEISS ScanPort anywhere

A travel case safely holds ZEISS ScanPort and all other components for easy and quick transportation. It is available in addition to ZEISS ScanPort.

ZEISS ScanPort travel case for transport between sites

Technical Data

ZEISS ScanPort Specification
Light source Blue Light Technology
Points per scan Up to 12 million a
Scanning volume Up to diameter 500 x 300 mm  b
Points distance [mm] Up to 0.03 mm
Payload 20 kg
Weight approx. 22 kg (modular concept: heaviest part 11 kg)
Packing dimensions 550 mm x 725 mm x 180 mm
Interface USB 2.0
Power AC 100 ~ 240V, 50/60 Hz
Operating system Windows 11
Software ZEISS INSPECT

a Compatible with ATOS Q & GOM Scan 1
b Rotation table diameter 350 mm

How a free ZEISS ScanPort evaluation works in Malaysia

ZEISS Metrology Experts from Premier Partner Alloytool (M) Sdn Bhd

Every specification was measured under ideal conditions. Your parts are not. Surface finish, tolerance band, geometry that hides from the sensor, deep pockets, undercuts, features you can see but can’t reach with a probe — these decide whether this instrument works for you, and none of them appear on a datasheet. That’s why we evaluate before you buy, on your parts, at no cost.



Alloytool runs three offices — Selangor, Penang and Johor — fast & quick response. At least two hold AUKOM certification, the independent European standard for metrology competence, and they’re backed by an in-house software and automation engineer who handles the ZEISS INSPECT side: reporting templates, data workflow, and integration with whatever you already run.

Most of our engineers came from measurement equipment backgrounds before ZEISS, so the conversation starts from your part & factory settings, not from a brochure.

  1. A brief consultation — size, material, surface finish, tolerance and the features you need to measure.
  2. We work out whether this equipment suits your requirment. If a 3D scanner, VMM or tactile CMM is the better answer, we’ll say so before booking anything.
  3. A team arrives with the instrument; desk stand and rotation table. Setup needs a bench and a power point.
  4. We scan your part with your team watching, and build the mesh live in ZEISS INSPECT.
  5. Where you supply CAD, we run the comparison and walk through the deviation result with you on the spot.

Sometimes a site visit takes longer to arrange than the evaluation itself. A virtual session gets you the same walkthrough over a screen share — the demo, software, the workflow, the reporting output, and answers to whatever your engineers want to interrogate. It’s the fastest way to reach a shortlist before you commit anyone’s afternoon, and it works well when the people who need convincing sit in different places.

Controlled area, customer NDA, plant shutdown — plenty of reasons a visitor is inconvenient. Ship the part to us instead. We scan it, run the comparison against your CAD, and return the mesh and the report. Useful when you want data in hand before you bring the wider team in.

For a genuine purchasing evaluation, we’ll consider placing a unit with you for a trial period so your own operators can run it on production parts, unsupervised, under real conditions. Availability depends on the model and current inventory, so ask early rather than late.

Everything produced during an evaluation belongs to you — scan data, meshes, deviation reports, the lot. We don’t retain it, and we don’t use your parts or results as reference material without written agreement. If confidentiality is a condition on your side, tell us and we’ll work to your NDA.

There is no one size fits all solution. We will be upfront with the pros and cons and share all the limitations and trade-offs for your consideration. This is why we are the reliable metrology partner many in the industry trust.

Don’t wait. Overcome your bottleneck now. Book a free call.
